Level Crossing Kit For Automating Flashin Lights, Bells And 2 Or 4 Gates On 1 To 3 Tracks

Regular price $5.99

Tax included. Shipping calculated at checkout.

How To Make A Realistic Level Crossing Without Spending A Small Fortune


Use this kit to:

  • Install a sensor controlled level crossing that automatically controls flashing lights and up to 4 gates on up to 3 tracks.

  • Have the crossing remain activated as long as any crossing track is occupied.

  • Install remotely controlled, easily hidden sensors that you can control remotely so that you don't have to work under your layout.

Choose, in the size box above, the parts below for the number of tracks you want to protect.

Advantages

  • No more working under layout or trying to hide components in above track scenery. The sensor LEDs are under the track and connected by wires (you determine the length) to the sensor control board that you mount in a location convenient to you.

  • Small IR sensors are easily hidden because they fit between rails of OO and HO scale track. And they still work well from positions below TT and N scale layouts.

  • And you make all this using our illustrated text and video instructions on how to set up a level crossing.



Kit Parts


A complete, illustrated step by step guide to making the circuit board, installing the gates and lights, installing the sensors under the track, installing the program, and tweaking to get realistic operation.

A plug and play level crossing program with instructions on how to set it to operate your level crossing.  Programing knowledge is not required.

How To Make A Realistic Level Crossing Without Spending A Small Fortune


Advantages

    No more working under layout or trying to hide components in above track scenery. The sensor LEDs are under the track and connected by wires (you determine the length) to the sensor control board that you mount in a location convenient to you.

    Small IR sensors are easily hidden because they fit between rails of OO and HO

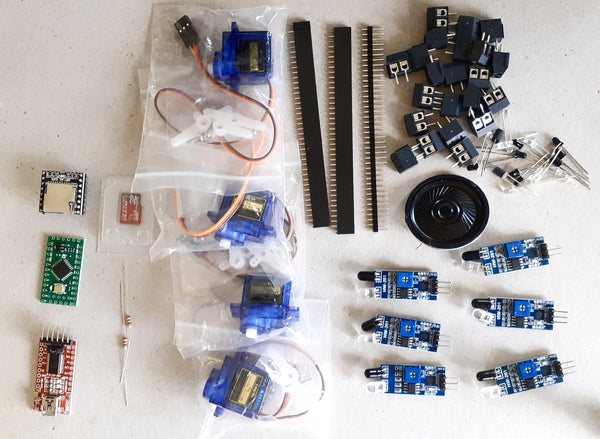

Parts

A complete, illustrated step by step guide to making the circuit board, installing the gates and lights, installing the sensors under the track, installing the program, and tweaking to get realistic operation.

A plug and play level crossing program with instructions on how to set it to operate your level crossing.  Programing knowledge is not required.

There choose from getting the circuit board, program and instruction guide only

or

  • Resistor 270 ohm                          2
  • DFPlayer mini                                1
  • Arduino mini pro                           1
  • Pin Header                                    1
  • 2 pin 5 mm pitch screw terminal   28
  • Dupont pin socket                        2
  • IR sensors                                    2, 4 or 6 6
  • 3mm replacement leds pair          4, 8 or12
  • Servos    TowerPro SG90             2 or 4
  • Speaker .5 ohm .5 watt               1
  • FT232RL FTDI programmer         1
  • Circuit Board                               1


IR Sensors -  2, 4, or 6, depending on the number of tracks you put in your crossing.
3mm replacement LEDs for the IR sensors - 2. 4, or 6 sets, depending on the number of tracks you put in your crossing.

2 or 4 gate servos, depending on your choice

 Note:

You supply the track, gates, lights and wire.
